Strip brushes

STRIP BRUSHES REQUEST FORM

TECHNICAL DRAWING

PARAMETERS OF THE STRIP BRUSHES

profile:	Galvanized - strip profile 5mm Galvanized - strip profile 3mm Galvanized - strip profile 8mm Stainless - strip profile 5mm Stainless - strip profile 3mm Stainless - strip profile 8mm
filament material:	Polyamide 6.6 - (Silon/Nylon) Polyamide 6 - (Silon/Nylon) Polypropylene (Myprene) Polyamide 6.12 * (Silon/Nylon) Polyamide 6 - anti-static (Silon/Nylon) Polyamide 6 - electriacally conductive (Silon/Nylon) Polyamide HT Polyamide without silicone Self-extinguishing polyamide Polybutylene terephthalate - detectable by metal Pekalon Polyethylene (Mylex) - car washes Polyvinyl chloride (PVC) Polyester Abralon - SIC Abralon - DM Pig bristle Horsehair Goat hair Tampico fibre Cotton Coconut fibre Basina fibre Arenga Brush mixture - 50% horsehair 50% polyamide Mixture - 50% black horsehair 50% black polyamide Mixture - 50% white horsehair 50% black polyamide Steel wire Brass wire Bronze wire Flat wire
fibre diameter (mm):	mm
L - brush length (mm):	mm
VD - visible fibre length (mm):	mm
CVD - strip brush width (mm):	mm
holder:	none   typ h   typ F   typ Y

BASIC INFORMATION

working area:	neutral         alkalic         acid
heat resistance: °C
Volume per order:
Annual volume:
intended use:	not select grinding / wood aging cleaning / washing finishing polishing oiling removing static electricity discharge sweeping other spreading / coating sealing transport / transfer sorting
utilization in the field:	not select Automotive Wood industry Pharmaceutical industry and cosmetics Communal and cleaning machines Washers Surface treatment of metals and plastics Hand tools and machines Glassmaking Sport and musical instruments Construction industry Engineering Textile Printing, polygraphy Drafting technology/sanitation/food industry Weapons, army Agriculture
file 1 (max 2MB)
file 2 (max 2MB)

CUSTOMER

	private person         legal entity
company:
VAT:
contact person:
street and street nr.:
city:
city code:
country:
email:
phone:

DESCRIPTION OF STRIP BRUSHES AND ITS PURPOSE OF USE

if you specify the purpose and use of a brush, our sales department staff will be able to recommend a better design of the body and a suitable filament material for the purpose.

UTILIZATION IN THE FIELD

• Automotive
• Wood industry
• Pharmaceutical industry and cosmetics
• Communal and cleaning machines
• Surface treatment of metals and plastics
• Glassmaking
• Construction industry
• Engineering
• Textile
• Printing, polygraphy
• Drafting technology/sanitation/food industry
• Weapons, army

INTENDED USE

• grinding / wood aging
• cleaning / washing
• finishing
• polishing
• oiling
• removing
• static electricity discharge
• sweeping
• other
• spreading / coating
• transport / transfer
• sorting

PRODUCTION TECHNOLOGY OF BRUSH SEALING STRIPS

Brush sealing strips are produced by pressing the filament material into a metal strip. Filament material is folded in the strip and attached by a supporting wire.

The standard length of the brush sealing strip is 1000mm, but we are able to produce brush strips up to 3000mm long or to cut them in shorter pieces according to the customer´s requirements.

The maximum visible length of plastic fiber is 110mm, for materials such as wire and natural materials we provide the information about maximum visible fiber length upon customer´s request.

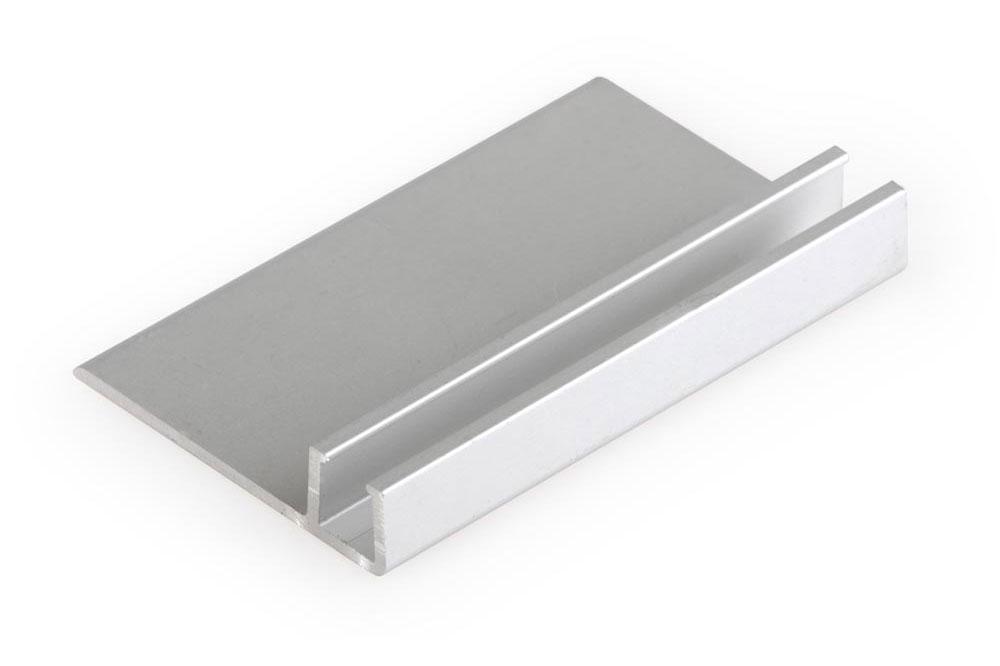

For brush sealing strips we can supply high-quality aluminum holders in types h, F, and Y. For some of these holders, we are able to deliver natural or anodized aluminum.

For the rest of these holder types, we supply anodized aluminum.

We are able to drill holes or grooves into holders, shorten them at an angle to customer requirements.

APPLICATION OF BRUSH SEALING STRIPS - SAMPLES:

• Cleaning, washing, dusting of flat surfaces, products, food, etc.;
• Safe transport of products;
• Product guidance in defined areas;
• Static electricity discharge;
• Separation of loose/bulk materials;
• Sealing, coverage of gaps;
• pressure strips /bars.
